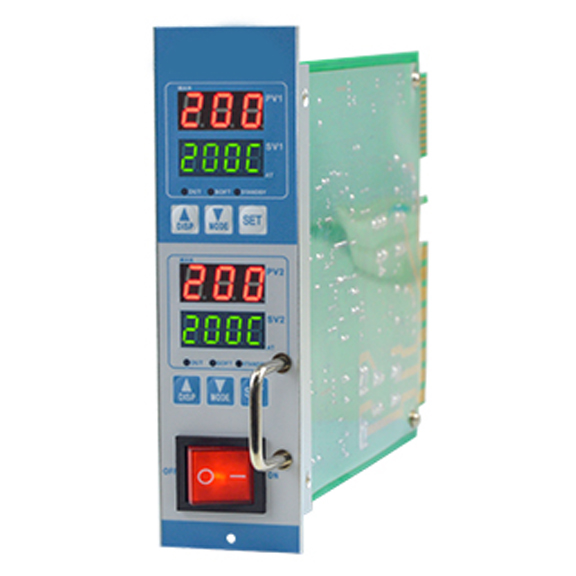

HRTC-F1 Control Modules (Dual Zone)
₹24,999.00
Dual Zones control module
The HRTC-F2 Hot Runner Control Module features a dual zone design that controls two zones independently within a single module. It saves panel space, reduces manufacturing costs, and provides accurate and reliable hot runner temperature control for injection molding applications.
The HRTC-F2 Hot Runner Control Module is a space-saving dual zone hot runner temperature controller designed for efficient and reliable temperature management in plastic injection molding applications. Featuring a unique two-zones-in-one-module design, the HRTC-F2 helps reduce controller panel space requirements and lowers overall manufacturing and installation costs.
This dual zone control module allows users to operate both zones independently, with separate display units and indicators for clear monitoring and precise temperature control. Its user-friendly interface makes operation simple, easy to learn, and suitable for a wide range of hot runner systems.
Built for stable performance and accurate temperature regulation, the HRTC-F2 is an ideal solution for manufacturers seeking compact design, operational efficiency, and cost-effective hot runner control in India.
Features of HRTC-F1 Dual Zone Control Module
- LED display
- Built-in buzzer
- Smart SOFT START function
- Dual zone per module, save cost and space
- Manual output in case of temperature sensor failure
- Compatible with DME, YUDO, etc brand of modules
Alarm & Protection
- High/Low temperature alarm
- Thermocouple open, reverse, short alarm
- Heater open, short, overload alarm
- Heating invalid alarm
- Fuse Blown alram
- Over-voltage protection
- Overload protection, cut off output
- Short circuit protection, cut off output
- Triac damage protection, cut off output
| Power Input | AC85~265V, 50/60 Hz |
|---|---|
| Power Output | 240Vac, 15A, 3600W |
| Sensor Type | J or K Thermocouple |
| Control Mode | Auto, Manual |
| Output Mode | Phase Angle, Zero Cross |
| Measurement Range | 0~500°C(32~932°F) |
| Measurement Accuracy | ± 0.25% Full scale |
| Setting Range | 0~450°C(32~842°F) |
| Control Accuracy | ± 0.5°C |
| Working environment | -0~55°C, 10~80% RH(No condensing) |
