MH Stainless Steel Vortex Pump – High Temperature Pumps
Original price was: ₹29,999.00.₹20,999.00Current price is: ₹20,999.00.
The WH Series Stainless Steel Vortex Pump is engineered for industrial applications requiring good corrosion resistance and reliable anti-blockage performance. Featuring a fully recessed impeller design, it creates a hydraulic vortex that allows fluid to flow through the casing with reduced blade contact.
Product Features
- Gas-Liquid Mixing
- Self-Priming Capability
- Corrosion Resistance
Technical Specification
| Model | Diameter | Motor | Performance Parameter | Pump Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inlet | Outlet | Power (kW) | (Hp) | Voltage (V) | Frequency (Hz) | Speed (r/min) | Max/Rated Head (m) | Max Capacity (L/min) | ||
| WH-05 | G3/4″ | G1/2″ | 0.37 | 0.5 | 3ø-380 | 50 | 2760 | 60/45 | 40 | 8 |
| MH-07 | G3/4″ | G1/2″ | 0.55 | 0.7 | 3ø-380 | 50 | 2760 | 80/50 | 45 | 10 |
| MH-15 | G1″ | G3/4″ | 1.1 | 1.5 | 3ø-380 | 50 | 2760 | 80/55 | 65 | 15.5 |
| MH-23 | G1-1/4″ | G1″ | 1.7 | 2.3 | 3ø-380 | 50 | 2760 | 100/60 | 120 | 20 |
| MH-33 | G1-1/2″ | G1-1/4″ | 2.5 | 3.3 | 3ø-380 | 50 | 2760 | 120/70 | 160 | 25.5 |
| MH-50 | G2″ | G1-1/2″ | 4 | 5 | 3ø-380 | 50 | 2760 | 70/50 | 220 | 40 |
| MH-75 | G2″ | G1-1/2″ | 5.5 | 7.5 | 3ø-380 | 50 | 2760 | 80/60 | 250 | 42 |
| MH-100 | DN65 | DN50 | 7.5 | 10 | 3ø-380 | 50 | 1470 | 70/50 | 483 | 138 |
| MH-150 | DN65 | DN50 | 11 | 15 | 3ø-380 | 50 | 1470 | 85/60 | 533 | 150 |
*The above characteristic testing is based on water transfer at normal speed under 20°C. The performance parameter error is approximately ±10%. Pump performance varies depending on the proportion and density of the liquid medium. Available in Indian Voltage 415v.

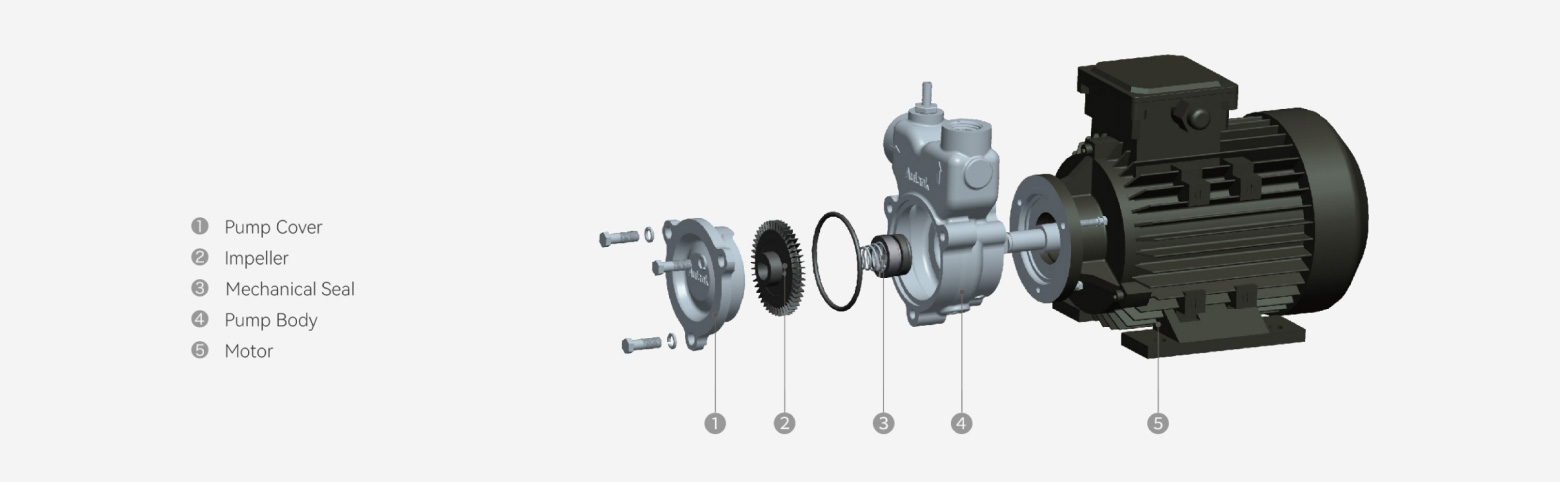

Pump Structure
The MH Pump production structure consists of the Pump Cover, Impeller, Mechanical Seal, Pump Body, and Motor, forming a corrosion-resistant self-priming gas-liquid mixing fluid transfer assembly.
Performance Curve
Working Condition
| Thermal Conductivity Water | Thermal Conductivity Oil | Glycol/Silicone Oil | Working Temperature | Maximum Elevation | Max withstand pressure |
|---|---|---|---|---|---|
| +5°C~+160°C | +5°C~+200°C | -30°C~+180°C | -5°C~+40°C | 1000m | 10bar |
| Weight | 11.150 lbs |
|---|---|
| Dimensions | 30.5 × 18 × 26 in |
| Application | Mold Temperature Control, Boiler Water Replenishment, Ultrasonic Cleaning, Food Machinery, Ozone Generators, High and Low Temperature Testing, etc. |
| Pressure | Low Pressure |
| Voltage | 380V/415V |
| Power | 0.37kw-11kw |
| Structure | Single Phase Pump / Three Phase Pump |
| Pump Body | 304 Stainless Steel |
| Impeller | Brass Impeller |
| Inlet/Outlet | 1"X1" |
